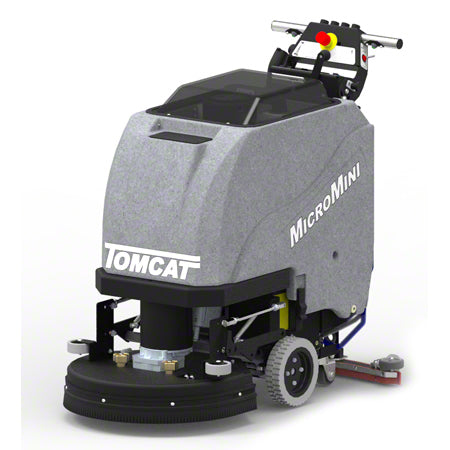

Tomcat® MicroMini Walk Behind Scrub-20"Disk,Traction,130AH
Tomcat® MicroMini Walk Behind Scrub-20"Disk,Traction,130AH
- CALL FOR PRICE - 901-791-4499
Item # TOM-164-20TD
- 500 lb. capacity scrub deck actuator. 30" curved squeegee with 2-sided rear blade. Adjustable stainless handlebar. Transparent lid to view tank.
- Disk motor: 0.75 hp/200 rpm; System voltage: 24 VDC
- Vacuum power: 0.8 hp/3-stage; Water lift/CFM: 70"/70 cfm
- Solution tank: 10 Gal.; Recovery tank: 10 Gal.
20" Disk, 130AH, Traction Dr., ea.
Specifications
- Tank Material: poly (5/16" thick)
- Chassis Construction: 3/16" powder coated steel
- Rear Casters: (2) 2.5" x 1.38" non-marking grey
- Front Wheels: (2) 8" x 2" non-marking solid grey
- Size: 42" L x 21" W x 39" H
- Weight: With batteries: 380 - 480 lbs.; Without batteries: 215 - 315 lbs.
- Battery System Voltage: 24 VDC
- Charger: 120VAC/60HZ input - 24VDC/12 amp output
- Drain hose: 1.5" diameter
- Demisting Chamber: 1.25 gallons
- Drain Saver: 30 cubic inches
- Standard Drive: 0.75 hp, all gear/sealed and pad assist
- Forward Speed: 0-230 ft/min
- Reverse Speed: 0-130 ft/min
Available in traction drive with Edge and traction drive with disk. EDGE orbital scrub head delivers premier chemical-free floor stripping while reducing water consumption by up to 70%. Squeegee adjustments made simple with simple wingnuts allows toolless maintenance of the squeegee blade. Front fill system features a stainless screen protecting your scrubber from debris for easy bucket filling. Tip back clam shell design. Disk model has gimballed drivers which improves cleaning on irregular floors.
Disk motor: 0.75 hp/200 rpm; System voltage: 24 VDC.
