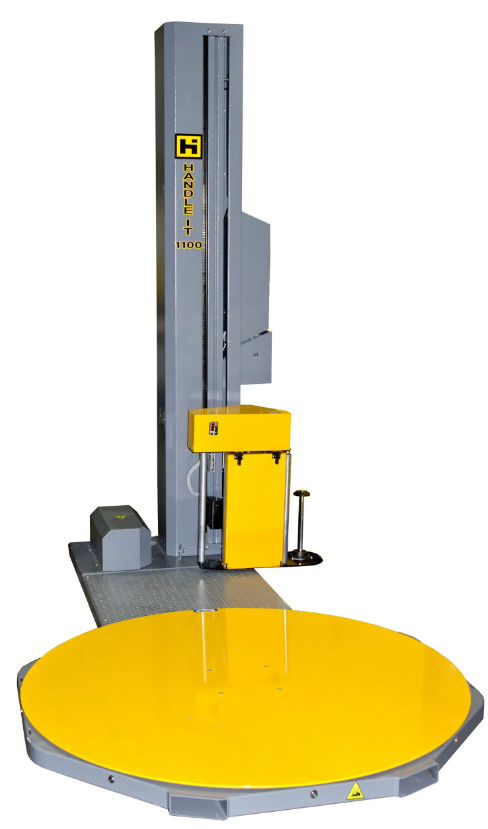

1100 Semi-Auto Turntable Stretch Wrap Machine

The Handle It® Model 1100 offers top-of-the-line functions and features at a great price. It is ideal for those who are looking for an efficient stretch wrap turntable machine capable of handling high volumes of pallets per day.

New Lower Starting Price!

250% film pre-stretch and full feature wrap cycle parameters.

Max average loads wrapped per day 300 cycles.

Overview

Performance & Specifications

• 300 maximum average loads per day
• Total max wrap height of 94″ optional -118″ extended height available
• 4400lb maximum load weight capacity
• 250% power pre-stretch film carriage for improved efficiency
• Turntable speed 3-12 RPM
• 59″ Turntable size
• 110v standard plug
• Machine size 104″L x 59″ W x 97″ H

Features

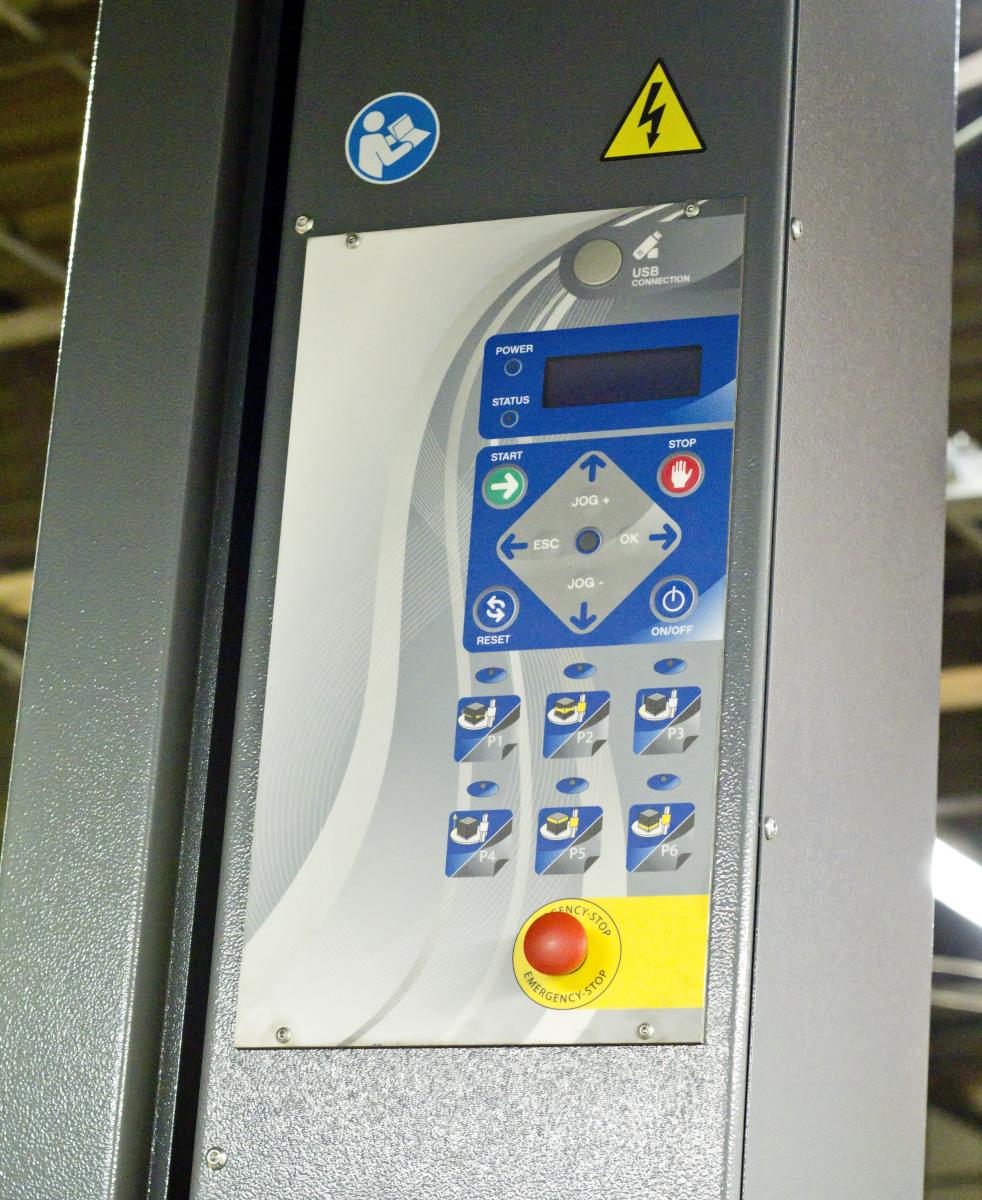

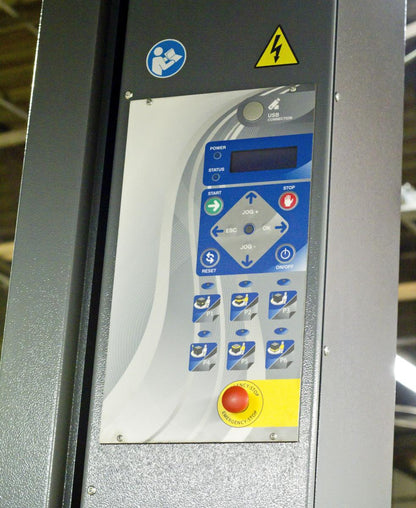

• User-friendly integrated PLC control board
• Frequency controller for carriage and/or turntable speed adjustment
• Photocell for pallet height detection

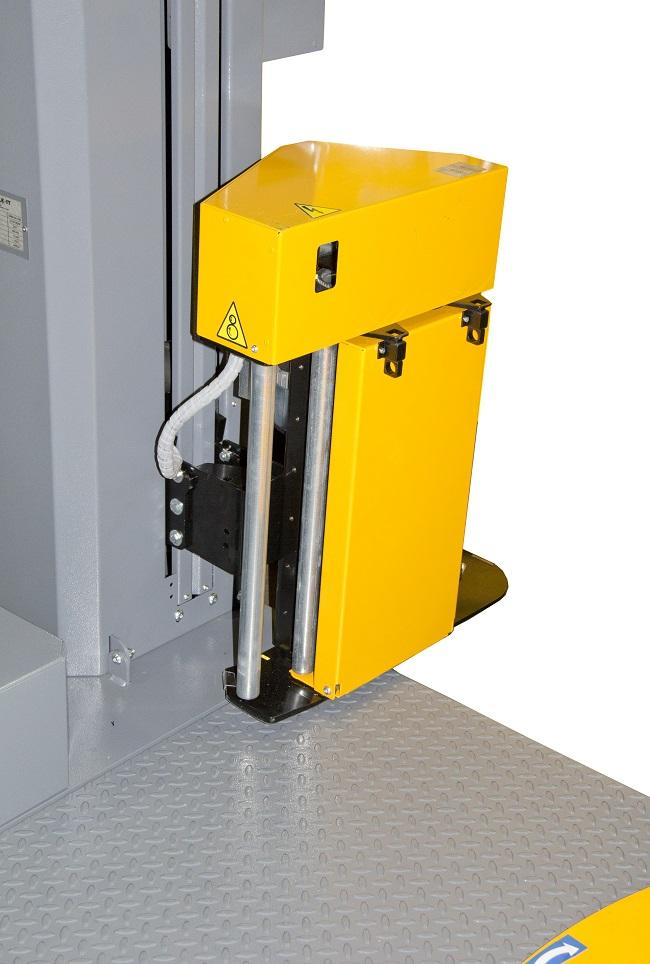

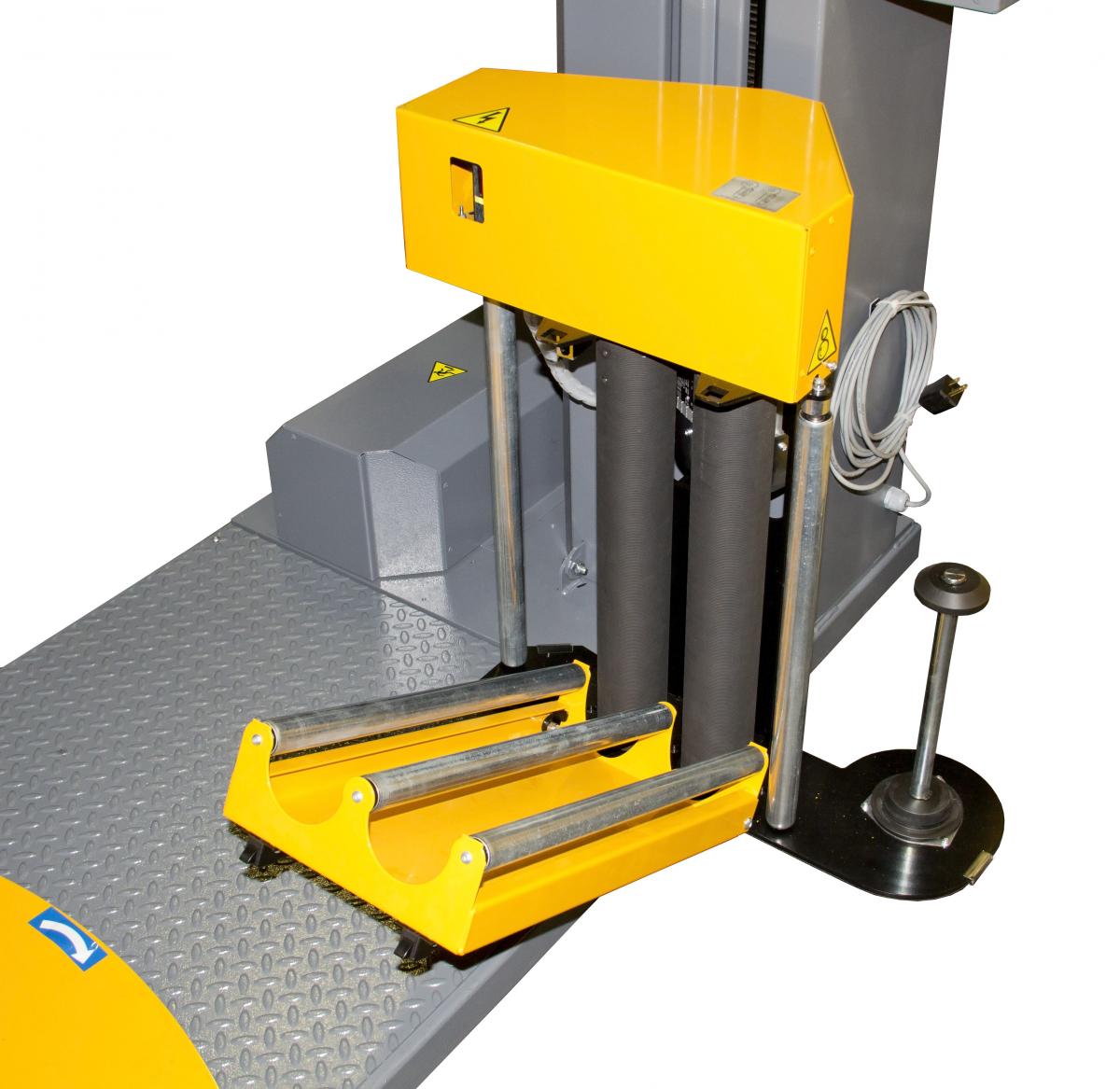

• Electronically controlled power pre-stretch carriage- load sensor dynamically controls the application of film for consistent film stretch.
• Stop at home position
• Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height
• Quick selection of 6 main parameters or saved programs
• USB port to upload software and download settings, reports, and statistics
• 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack
• Storage of 32 end user programs
• On-board diagnostics
• 3 year warranty

Benefits

• Rack and pinion carriage drive system increases reliability and decreases down time
• Heavy duty frame construction for the most demanding jobs
• Integrated PLC controls with onboard diagnostics make repairs easier to identify and reduces downtime
• Belt driven power pre-stretch carriage for added reliability
• Heavy Duty carriage rollers and self lubricating turntable bearings
• Password protection and one of the widest array of wrap cycle parameters available

Accessories

AVAILABLE OPTIONS

• Integrated Scale
• Automatic film cutter
• Label Printer for weight tickets
• Frame extension for long pallet loads
• Loading Ramp
• Roping System
• 118” Max Wrap Height
• Top Press
• Photocell for Dark Loads
• Cold Environment Kit

Specifications

• Turntable speed 3-12 RPM
• 59″ Turntable size
• 110v standard plug
• Machine size 104″L x 59″ W x 97″ H
